Description

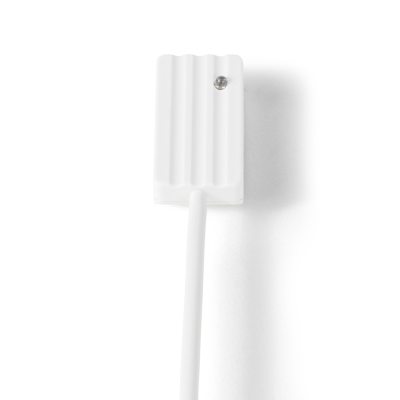

The glass break detector is keeping a plane glass-area within a maximum radius of 2 m under surveillance. The glass break detector must be pasted at the pane of glass with glueset from LOCTITE (Accessories).A surveillance of structure-glass is not possible. Also it is not allowed to use the glassbreak-detector on wired glass or security-glass, because the wire netting and the plastic-foil are damping the mechanical oscillations.
The GB-5100 detectors with relay output and LED indication can be used in smaller installations (1-5 pcs).
Secondary Packaging: 30 Units
Technical data
Supply voltage |
8 - 18 VDC |
Current consumption (12 VDC) |
5 mA |
Current consumption (12 VDC), quiescent |
0.6 mA |
Switching voltage |
Max. 24 V DC |
Switching current |
Max. 200 mA |
Range |
Radius: 2 m |
Cable length |
2 m |
Operating temperature |
-25 ~ 70 °C |
Reset voltage |
Max. 2 V |
Contact resistance |
5 Ω |
Housing material |
S-B |
Housing protection |
IP67 |
Environmental class |
III |
Approval |
VdS Klasse B (pending) |
Documentation |
Data sheet (en)
Description
The glass break detector is keeping a plane glass-area within a maximum radius of 2 m under surveillance. The glass break detector must be pasted at the pane of glass with glueset from LOCTITE (Accessories).A surveillance of structure-glass is not possible. Also it is not allowed to use the glassbreak-detector on wired glass or security-glass, because the wire netting and the plastic-foil are damping the mechanical oscillations.
The GB-5100 detectors with relay output and LED indication can be used in smaller installations (1-5 pcs).
Secondary Packaging: 25 Units
Technical data
Supply voltage |
8 - 18 VDC |
Current consumption (12 VDC) |
5 mA |
Current consumption (12 VDC), quiescent |
0.6 mA |
Switching voltage |
Max. 24 V DC |
Switching current |
Max. 200 mA |
Range |
Radius: 2 m |
Cable length |
6 m |
Operating temperature |
-25 ~ 70 °C |
Reset voltage |
Max. 2 V |
Contact resistance |
5 Ω |
Housing material |
S-B |
Housing protection |
IP67 |
Environmental class |
III |
Approval |
VdS Klasse B (pending) |
Documentation |
Description
The glass break detector is keeping a plane glass-area within a maximum radius of 2 m under surveillance. The glass break detector must be pasted at the pane of glass with glueset from LOCTITE (Accessories).A surveillance of structure-glass is not possible. Also it is not allowed to use the glassbreak-detector on wired glass or security-glass, because the wire netting and the plastic-foil are damping the mechanical oscillations.
The detectors can be used in combination with the interface unit, GB-5000-IN, in bigger installations where you have to consider power consumption. It is possible to connect up to 20 detectors to one interface unit.
Secondary Packaging: 15 Units
Technical data
Supply voltage |
3 – 16 V DC |
Current consumption |
4 mA (6 VDC) |
Current consumption, quiescent |
˂1 µA (ca. 20 nA) |
Cable length |
10 m |
Operating temperature |
-25 ~ 70 °C |
Reset voltage |
Max. 1 V |
Housing material |
S-B |
Housing protection |
IP67 |
Environmental class |
III |
Approval |
VdS Klasse B (pending) |
Documentation |
