Description

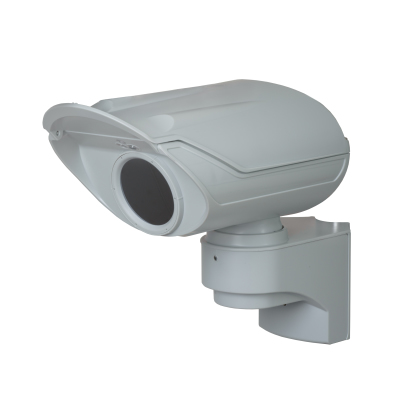

The PRO-E-18W is suitable for outdoor applications requiring a volumetric wide angle view. The detector has a universal mounting facility for walls or poles. Sophisticated tamper detection provides a secure method of external detection. The detector has an internal cable management system. The detector has quick set up function, with options for additional configurations.

Technical data

Supply voltage

10.5 - 30 VDC, 24VAC+/- 15% auto-sensing

Detection characteristics / range

21m x 24m (Lx W)
-1m and up to +8m near surrounding area

Sensitivity adjustment

20% - 140% (% of standard)

Weight

0.98Kg

Dimensions (L x W x H)

358mm x 188mm x 290mm

Cable entry

diameter 2 x 4-7mm

Mounting

Wall and pole mounting, cable management bracket included

Supply current

approx. 18mA @12VDC, 12mA @ 24VDC 30mA @ 24VAC (@+25⁰C)

Housing material

Luran® S (ASA)

Sensitivity

Default 40%, 75% , 100% (standard sensitivity)

Alarm output

Programmable 1 x alarm = IR alarm, 360 Protect, anti-masking

Output relay (on board)

power supply, temperature, heating, anti-mask, watchdog.
Programmable 1 x tamper = housing cover, alignment, cable management cover, removal
Programmable 2 x 360Protect = anti-mask, zone, or other events

Detection type

Volumetric wide angle
Speed 0.2 - 5m/s

Documentation

Description

The PRO-E-45H is suitable for outdoor applications requiring a medium range curtain view. The detector has a universal mounting facility for walls or poles. Sophisticated tamper detection provides a secure method of external detection. The detector has an internal cable management system. The detector has quick set up function, with options for additional

Technical data

Supply voltage

10.5 - 30 VDC, 24VAC+/- 15% auto-sensing

Detection characteristics / range

50m x 3.3m (Lx W)
-1m and up to +8m near surrounding area

Sensitivity adjustment

20% - 140% (% of standard)

Weight

0.98Kg

Dimensions (L x W x H)

358mm x 188mm x 290mm

Cable entry

diameter 2 x 4-7mm

Mounting

Wall and pole mounting, cable management bracket included

Supply current

approx. 18mA @12VDC, 12mA @ 24VDC 30mA @ 24VAC (@+25⁰C)

Housing material

Luran® S (ASA)

Sensitivity

Default 40%, 75% , 100% (standard sensitivity)

Alarm output

Programmable 1 x alarm = IR alarm, 360 Protect, anti-masking

Output relay (on board)

Programmable 1 x fault = power supply, temperature, heating, anti-mask, watchdog.
Programmable 1 x tamper = housing cover, alignment, cable management cover, removal
Programmable 2 x 360Protect = anti-mask, zone, or other events

Detection type

Curtain medium range
Speed 0.2 - 5m/s

Documentation

Description

The PRO-E-100 is suitable for outdoor applications requiring a medium range curtain view. The detector has a universal mounting facility for walls or poles. Sophisticated tamper detection provides a secure method of external detection. The detector has an internal cable management system. The detector has quick set up function, with options for additional settings.

Technical data

Supply voltage

10.5 - 30 VDC, 24VAC+/- 15% auto-sensing

Detection characteristics / range

120m x 2.7m (Lx W)
-1m and up to +8m near surrounding area

Sensitivity adjustment

20% - 140% (% of standard)

Weight

0.98Kg

Dimensions (L x W x H)

358mm x 188mm x 290mm

Cable entry

diameter 2 x 4-7mm

Mounting

Wall and pole mounting, cable management bracket included

Supply current

approx. 18mA @12VDC, 12mA @ 24VDC 30mA @ 24VAC (@+25⁰C)

Housing material

Luran® S (ASA)

Sensitivity

Default 40%, 75% , 100% (standard sensitivity)

Alarm output

Programmable 1 x alarm = IR alarm, 360 Protect, anti-masking

Output relay (on board)

Programmable 1 x fault = power supply, temperature, heating, anti-mask, watchdog.
Programmable 1 x tamper = housing cover, alignment, cable management cover, removal
Programmable 2 x 360Protect = anti-mask, zone, or other events

Detection type

Curtain long range
Speed 0.2 - 5m/s

Documentation

Description

Intelligent active infrared beams especially designed for perimeter protection. The synchronised and intelligent "twin" beams reinforce each other improving both range and stability in severe weather conditions. Use BP -60TE when pole mounted.

Technical data

Housing

PC resin (wine red)

Supply voltage

12 ~ 30 VDC

Tamper output contact rating

30 V (AC/DC) < 0.5 A
Transmitter and receiver covers

Current consumption

55 mA

Beam spread

0.03 x distance (e.g. 1.2 m at 40 m)

Detection system

Simultaneous breaking of 2 beams

Protection distance

Outdoor 20 m, indoor 40 m

Infrared beam

Double modulation pulsed beam by LED

Response time

50 ~ 700 msec. (variable by potentiometer)

Horizontal beam adjustment

+90 ~ -90°

Vertical beam adjustment

+10 ~ -10°

Frequency

4 selectable channels

Alarm output contact rating

30 V (AC/DC) < 0.5 A

Operating temperature

-25 ~ +60 °C

Housing protection (EN 60529)

IP55

Dimensions (W x H x D)

73 x 170 x 71.5 mm

Weight

0.380 kg transmitter
0.400 kg receiver

Mounting

Height 0.8 ~ 1.0 m

Documentation

Description

Intelligent active infrared beams especially designed for perimeter protection. The synchronised and intelligent "twin" beams reinforce each other improving both range and stability in severe weather conditions. Use BP -60TE when pole mounted.

Technical data

Housing

PC resin (wine red)

Supply voltage

12 ~ 30 VDC

Tamper output contact rating

30 V (AC/DC) < 0.5 A
Transmitter and receiver covers

Current consumption

75 mA

Beam spread

0.03 x distance (e.g. 1.2 m at 40 m)

Detection system

Simultaneous breaking of 2 beams

Protection distance

Outdoor 40 m, indoor 80 m

Infrared beam

Double modulation pulsed beam by LED

Response time

50 ~ 700 msec. (variable by potentiometer)

Horizontal beam adjustment

+90 ~ -90°

Vertical beam adjustment

+10 ~ -10°

Frequency

4 selectable channels

Alarm output contact rating

30 V (AC/DC) < 0.5 A

Operating temperature

-25 ~ +60 °C

Housing protection (EN 60529)

IP55

Dimensions (W x H x D)

73 x 170 x 71.5 mm

Weight

0.380 kg transmitter
0.400 kg receiver

Mounting

Height 0.8 ~ 1.0 m

Documentation

Description

Intelligent active infrared beams especially designed for perimeter protection. The synchronised and intelligent "twin" beams reinforce each other improving both range and stability in severe weather conditions. Use BP -60TE when pole mounted.

Technical data

Housing

PC resin (wine red)

Supply voltage

12 ~ 30 VDC

Tamper output contact rating

30 V (AC/DC) < 0.5 A
Transmitter and receiver covers

Current consumption

80 mA

Beam spread

0.03 x distance (e.g. 1.2 m at 40 m)

Detection system

Simultaneous breaking of 2 beams

Protection distance

Outdoor 60 m, indoor 120 m

Infrared beam

Double modulation pulsed beam by LED

Response time

50 ~ 700 msec. (variable by potentiometer)

Horizontal beam adjustment

+90 ~ -90°

Vertical beam adjustment

+10 ~ -10°

Frequency

4 selectable channels

Alarm output contact rating

30 V (AC/DC) < 0.5 A

Operating temperature

-25 ~ +60 °C

Housing protection (EN 60529)

IP55

Dimensions (W x H x D)

73 x 170 x 71.5 mm

Weight

0.380 kg transmitter
0.400 kg receiver

Mounting

Height 0.8 ~ 1.0 m

Documentation

Description

Intelligent active infrared beams especially designed for perimeter protection. The synchronized and sophisticated "quad" beams reinforce each other to improve both range and stability in severe weather conditions. Use BP-200F when pole mounted.

Technical data

Supply voltage

12 ~ 30 VDC

Tamper output contact rating

30 V (AC/DC) < 1 A

Current consumption

95 mA

Beam spread

0.024 x distance (e.g. 2.40 m at 100 m)

Detection system

Simultaneous breaking of 4 beams

Protection distance

Outdoor 50 m

Infrared beam

Double modulation pulsed beam by LED

Response time

50 ~ 700 msec. (variable)

Horizontal beam adjustment

+90 ~ -90°

Vertical beam adjustment

+10 ~ -10°

Frequency

4 separate choices of frequencies

Alarm output contact rating

30 V (AC/DC) < 1 A

Operating temperature

-35 ~ +66 °C

Dimensions (W x H x D)

104 x 390 x 98 mm

Weight

2.500 kg total
1.200 kg transmitter
1.300 kg receiver

Output rating

Environmental relay 30 V (AC/DC) < 1A

LED Indicators

Receiver - Alarm LED
Receiver -Sensitivity attenuation LED

Documentation

Description

Intelligent active infrared beams especially designed for perimeter protection. The synchronized and sophisticated "quad" beams reinforce each other to improve both range and stability in severe weather conditions. Use BP-200F when pole mounted.

Technical data

Tamper output contact rating

30 V (AC/DC) < 0.1 A

Power supply

12 ~ 30 VDC

Current consumption

105 mA

Beam spread

0.024 x distance (e.g. 2.40 m at 100 m)

Detection system

Simultaneous breaking of 4 beams

Protection distance

Outdoor 100 m

Infrared beam

Double modulation pulsed beam by LED

Response time

50 ~ 700 msec. (variable)

Horizontal beam adjustment

+90 ~ -90°

Vertical beam adjustment

+10 ~ -10°

Frequency

4 separate choices of frequencies

Alarm output contact rating

30 V (AC/DC) < 1 A

Operating temperature

-35 ~ +66 °C

Dimensions (W x H x D)

104 x 390 x 98 mm

Weight

Total 2.500 kg
Transmitter 1.200 kg
Receiver 1.300 kg

Output rating

Environmental relay 30 V (AC/DC) < 1 A

LED Indicators

Receiver - Alarm LED
Receiver - Sensitivity attenuation LED

Documentation

Description

Intelligent active infrared beams especially designed for perimeter protection. The synchronized and sophisticated "quad" beams reinforce each other to improve both range and stability in severe weather conditions. Use BP-200F when pole mounted.

Technical data

Tamper output contact rating

30 V (AC/DC) < 1 A

Power supply

12 ~ 30 VDC

Current consumption

120 mA

Beam spread

0.024 x distance (e.g. 2.40 m at 100 m)

Detection system

Simultaneous breaking of 4 beams

Protection distance

Outdoor 200 m

Infrared beam

Double modulation pulsed beam by LED

Response time

50 ~ 700 msec. (variable)

Horizontal beam adjustment

+90 ~ -90°

Vertical beam adjustment

+10 ~ -10°

Frequency

4 selectable channels

Alarm output contact rating

30 V (AC/DC) < 1 A

Operating temperature

-35 ~ +66 °C

Dimensions (W x H x D)

104 x 390 x 98 mm

Weight

2.500 kg Total
1.200 kg Transmitter
1.300 kg Receiver

Output rating

Environmental relay 30 V (AC/DC) < 1 A

LED Indicators

Receiver - Alarm LED
Receiver - Sensitivity attenuation LED
