Description

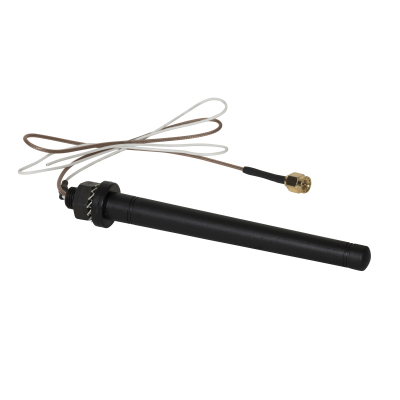

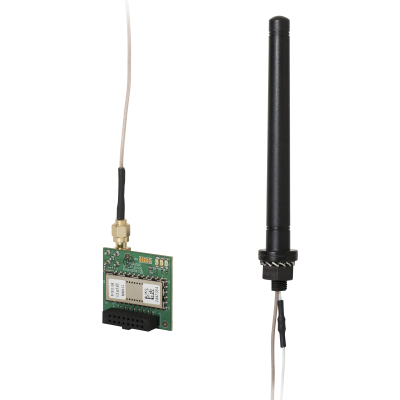

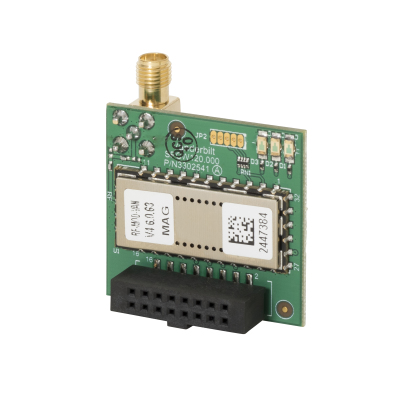

The SPCW120.000 wireless module provides an interface for the SPC panel to communicate with wireless detectors and remote controls within reception range. The wireless module plugs directly onto the main PCB of the SPC system and the kit includes an antenna which is mounted directly onto the SPC housing.Technical data
Weight |
44 g |
Dimensions (L x W x H) |
Module: |
Frequency |
868 - 869 Mhz |
Description

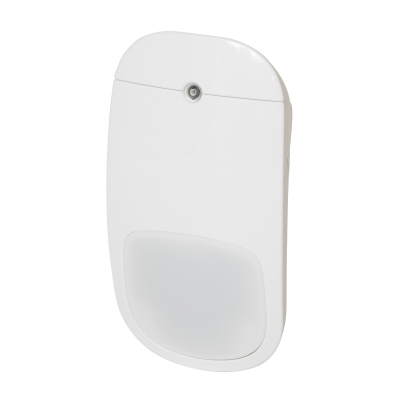

The WPIR wireless detector is a passive infra red quad element motion detector which is supported by the SPC system. The device has a 12m detection range and has firmware configurable settings such as Sensitivity, Pulse Count, Supervision Time, LED operation and Pet Immunity.Technical data
Weight |
135 g |
Dimensions (L x W x H) |
108mm x 58mm x 42.5mm |
Battery lifetime |
> 5 years |
Battery type |
GP CR123A Lithium |
Max. pet weight |
25 Kg |
Operating temperature |
-10 ~ +50 °C |
Frequency |
868 - 869 Mhz |
Current consumption |
Standby ~11 µA |
Detection type |
Quad Element PIR |
Detection characteristics / range |
12 meter |
Documentation |
Data sheet (en)
Description

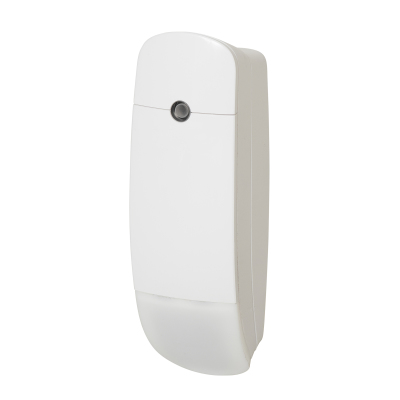

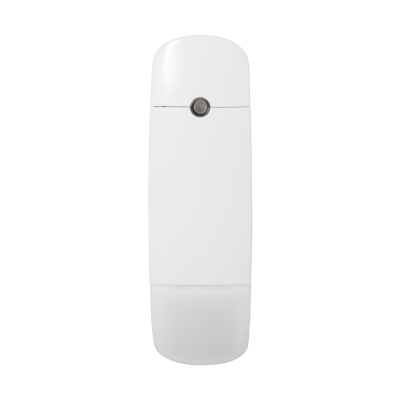

The WPIR-CRT wireless detector is a passive infra curtain motion detector which is supported by the SPC system. The device has a 12m detection range and a 6° detection angle. The device has firmware configurable settings such as Sensitivity, Pulse Count, Supervision Time and LED behavior.Technical data
Weight |
110 g |
Dimensions (L x W x H) |
103mm x 31.5mm x 34.5mm |
Battery lifetime |
> 5 years |
Battery type |
3V Type CR123A Lithium |
Operating temperature |
10°C to +50°C |
Current consumption |
Standby ~11 μA |
Detection type |
PYRO Element with Mirror Optics |
Detection characteristics / range |
12 meter @ 6° |
Documentation |
Description

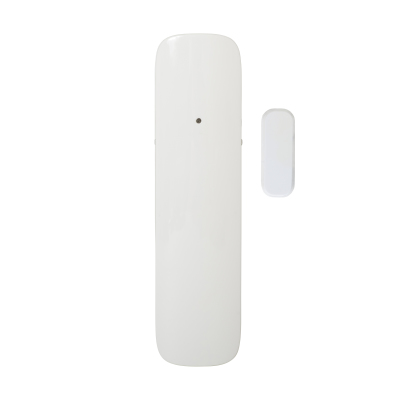

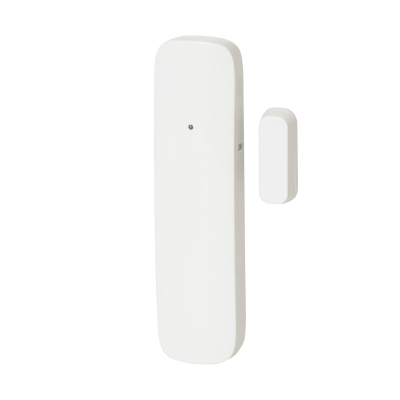

The WMAG device is a slim and stylish wireless magnetic contact which is supported by the SPC system. The device supports Left or Right magnet placment with highly accurate hall effect sensors. For quick installation, the device is mounted to the target surface using very strong adhesive tape. Firmware configurable features include Supervision time and LED behaviour.Technical data
Weight |
100g |
Dimensions (L x W x H) |
100mm x 16mm x 26mm |
Battery lifetime |
>5 years |
Battery type |
2 Lithium batteries |
Operating temperature |
-10 ~ +50 °C |
Frequency |
868 - 869 Mhz |
Current consumption |
Standby ~4μA |
Documentation |
Description

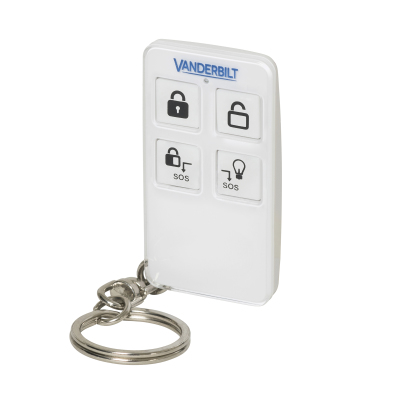

The WRMT is a multi-functional remote control that allows a user to interact with their SPC system. The device supports common functions such as Set, Unset and Partset as well as a user programmable output function and a SOS panic feature. The WRMT battery is also replaceable for maximum life duration.Technical data
Weight |
20g |
Dimensions (L x W x H) |
87mm x 38mm x 12mm |
Battery lifetime |
> 5 years |
Battery type |
3V Lithium CR2032 |
Operating temperature |
-10 ~ +50 °C |
Frequency |
868 - 869 Mhz |
Documentation |
Description

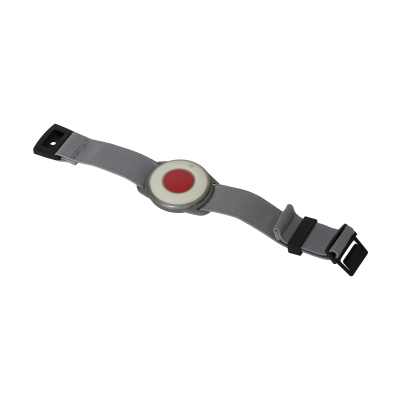

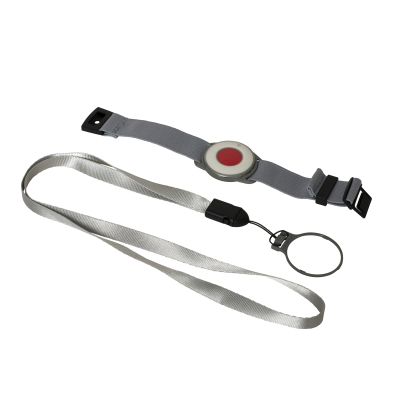

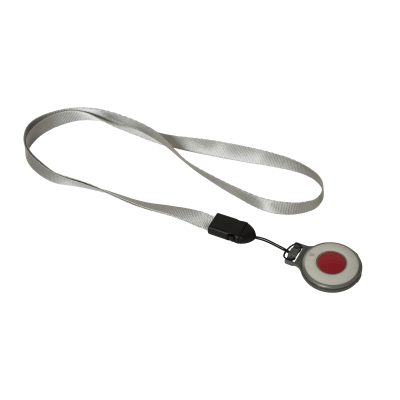

The WPAN is a water resistant wireless personal alarm button which is supported by the SPC system. The device can be worn as a watch or pendant. The device can also be programmed to activate user defined outputs on the SPC system.Technical data
Weight |
22g |
Battery lifetime |
> 5 years |
Battery type |
CR2032 (not replaceable) |
Dimensions (Ø x H) |
34 mm x 0.9mm |
Operation temperature |
-10°C ~ +50 °C |
Frequency |
868 - 868 Mhz |
Documentation |
Description

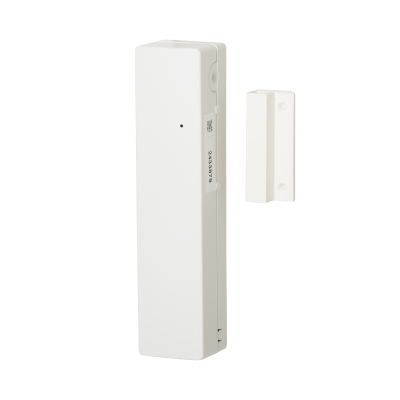

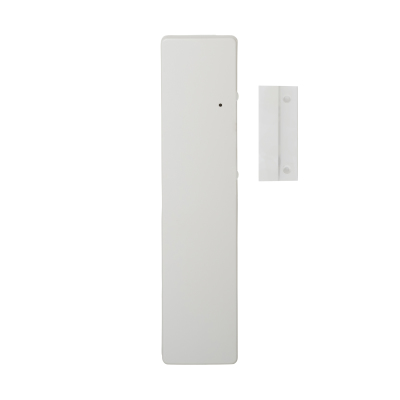

The WMAG-I device is a wireless magnetic contact which is supported by the SPC system. The device activates by internal reed switch, but also supports the fitting of an additional wired detector. Firmware configurable features include Supervision time, LED behaviour as well as AND / OR selectivity of the activating input (internal or external contact).Technical data
Weight |
50g |
Dimensions (L x W x H) |
22mm x 98mm x 21mm |
Battery lifetime |
>5 years |
Battery type |
3V Type CR123A Lithium |
Operating temperature |
-10 ~ +50 °C |
Frequency |
868 - 869 Mhz |
Documentation |
